Linking Machines

HS-VD

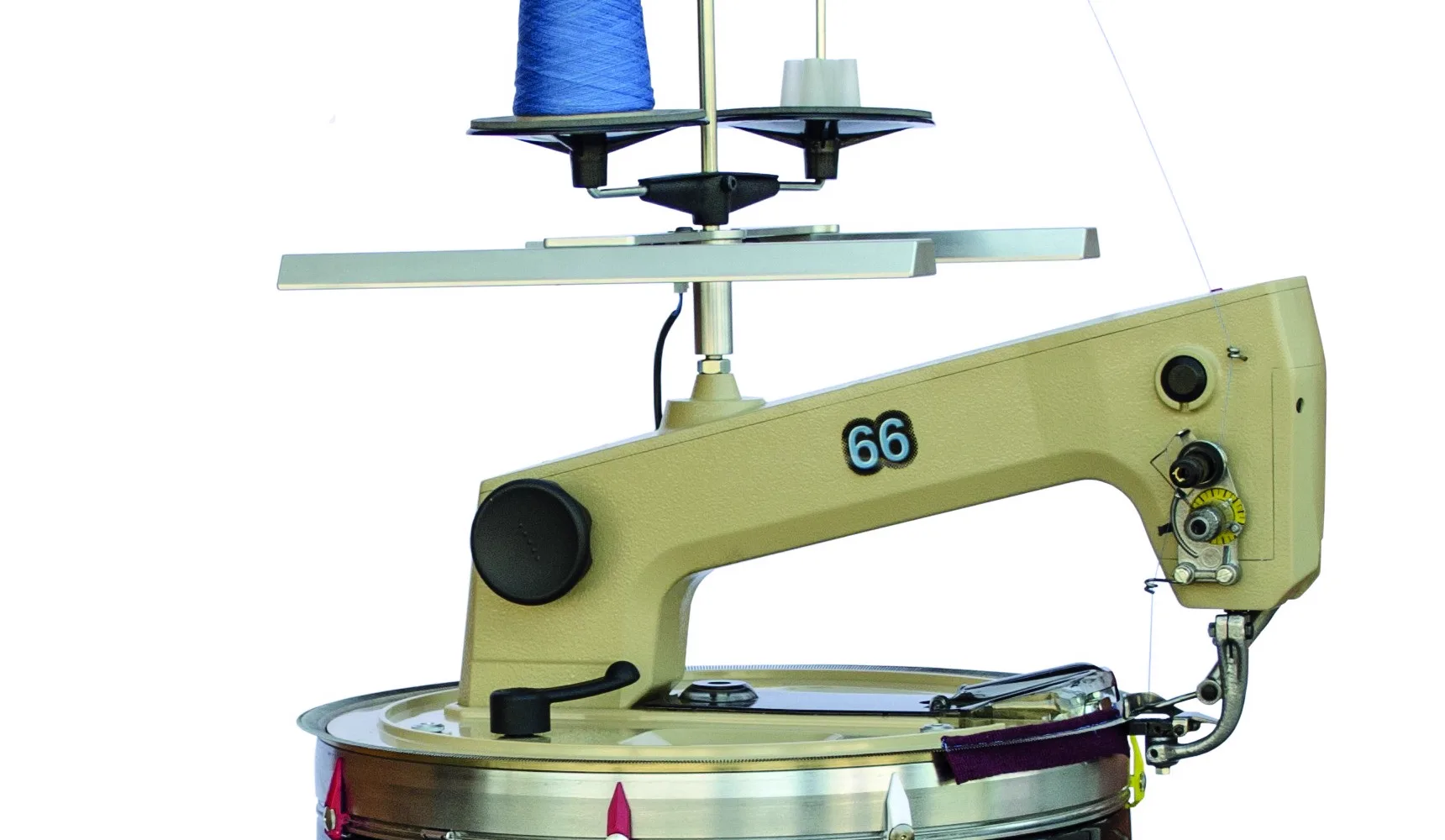

Linking machine for knitwear with eye needle approaching from the inside

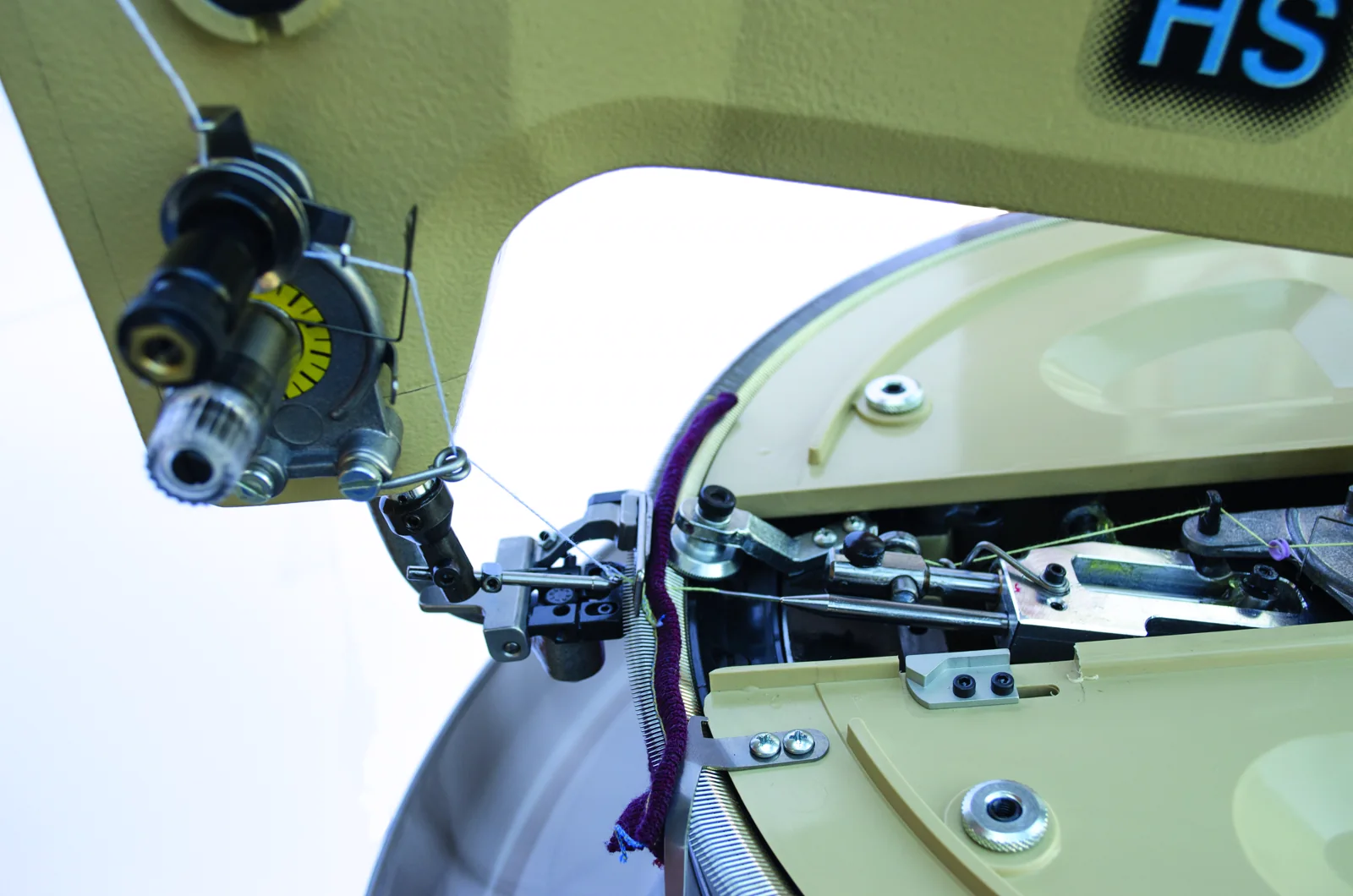

Eye needle approaching from the inside of the dial.
The fabric is loaded on the reverse side.
Single thread chainstitch type "101" OR Two-thread chainstitch type "401"
Brushless motor with variable speed drive up to maximum 1200 stitches/minute.
Very low power consumption (115 watt).
Suitable for single phase as well as three-phase motor
Clockwise or anticlockwise dial motion (on request).
Safety needle stop device.
Needle positioning system
New VD stand.
New easy turning footboard.
Rotable head.
Stainless steel points.
Extra large dial mm 460 diameter.
Interchangeable gauges: sizes from 3 to 26
Led lamp (on request)
ON REQUEST THE MACHINE CAN BE SUPPLIED IN "K" VERSION (ANGLE OF INCLINATION OF THE POINTS AT 30°)
